Air conditioning system configuration

Model：DJPA-L

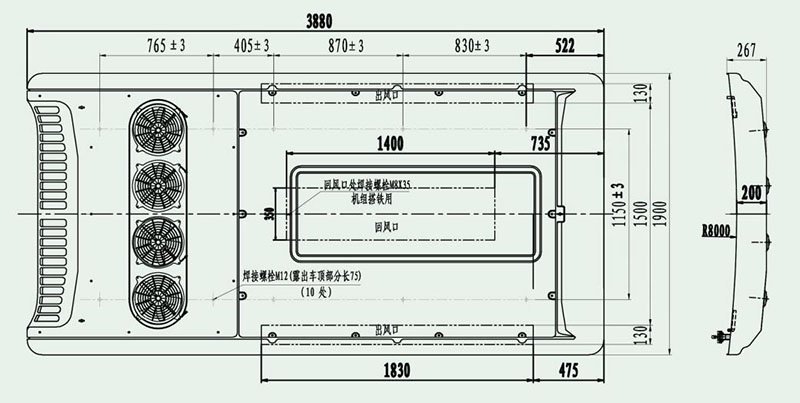

1、roof mounted AC drawing （Dimension：3880 x 1900 x 200 mm）

2、Main technical parameter

Refrigerating capacity：30000kcal/h               Refrigerant：R134a

Compressor displacement: 611cc/r                Standard filling volume：5.8 kg

Evaporator air volume：6000 m³/h                System power consumption：≤ 100A（24V）

Condenser air volume：8400 m³/h                Total weight：≤  200 kg

3、System main configuration

Item

Brand

Feature

QTY

UNIT

Compressor

AC compressor

BOCK/BITZER

Imported compressor with high efficiency, stable performance and high reliability

1

UNIT

Top AC

Evaporate core

JIEXIN

Copper tube, aluminum fin type

2

PIC

Condenser core

JIEXIN

Multi-circuit parallel flow aluminum tube type

1

PIC

Evaporate fan

JIEXIN

Imported bearings, carbon brushes, commutators, large air volume, low noise, long life

8

PIC

Condenser fan

JIEXIN

Imported bearings, carbon brushes, commutators, large air volume, low noise, long life

4

PIC

Expansion valve

FUJIKOKI

high precision

2

PIC

Pressure Switch

LEILI

Composite pressure switch with high sensitivity

1

PIC

Drier

HONGSEN

Low flow resistance, high adsorption capacity

1

PIC

Fresh air system

MABUCHI

Japanese motor, high reliability

1

PIC

AC Housing

JIEXIN

LFT moulding

1

SET

Electric

Control Panel

HENGTAI

PCM211 digital display +Rotate button

1

PIC

Socket

AMP

Silver plating, acid alkali salt corrosion resistance, dustproof and waterproof

1

SET

Pipe

Aluminum Pipe

JIEXIN

Aluminum Pipe

1

SET

Soft pipe

CODAN

Danish joint venture brand, High voltage resistance, good performance

1

SET

Accessory

Air return grille

JIEXIN

Aluminum alloy material, anti-bacterial and anti-virus filter screen, easy to clean

1

PIC

Drain pipe

JIEXIN

Nylon steel pipe

1

SET

Clamp

JIEXIN

Stainless steel material

1

SET

Install accessory

JIEXIN

Sealing strip, gasket, etc

1

SET
